HUB Shared Storage

Technical Specifications

Shared & Direct-Attached Storage Solutions

System

Facilis 8

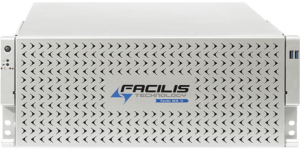

HUB 16

HUB Hybrid 16

HUB 16S



HUB 8S



HUB One

XP16 / NL16






Capacity (TB)

 32, 48, 64, 96 64, 96, 128, 192 80, 96, 112, 128 32, 64 16, 32 NA 64, 96, 128, 192

Power Supply

 1 x 300W

2x 350W (2+1)

optional

 2 x 600W (2+1) 2 x 600W (2+1) 2 x 600W (2+1) 2x 350W (2+1) 2x 350W (2+1) 2 x 600W (2+1)
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Power Input

 100-240 VAC, 100-240 VAC, 100-240 VAC, 100-240 VAC, 100-240 VAC, 100-240 VAC, 100-240 VAC,
50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Auto switching Auto switching Auto switching Auto switching Auto switching Auto switching Auto switching
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Video Out

 SXGA (15-pin D-Sub) SXGA (15-pin D-Sub) SXGA (15-pin D-Sub) SXGA (15-pin D-Sub) SXGA (15-pin D-Sub) SXGA (15-pin D-Sub) N/A
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Basic Connectivity

 Dual-port 8/16Gb FC Dual-port 8/16Gb FC Dual-port 8/16Gb FC Dual-port 8/16Gb FC Dual-port 8/16Gb FC Dual-port 8/16Gb FC 12Gbps SAS

6Gbps SAS RAID

(any one choice)

 Dual-port 10/25/40Gb E Dual-port 10/25/40Gb E Dual-port 10/25/40Gb E Dual-port 10/25/40Gb E Dual-port 10/25/40Gb E Dual-port 10/25/40Gb E NA
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Additional

Connectivity

 32Gb/s Fibre Channel 32Gb/s Fibre Channel 32Gb/s Fibre Channel 32Gb/s Fibre Channel 32Gb/s Fibre Channel 32Gb/s Fibre Channel NA
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Physical Dimensions

 D (22”) x W(19”) D (26”) x W(19”) D (26”) x W(19”) D (26”) x W(19”) D (22”) x W(19”) D (22”) x W(19”) D (26”) x W(19”)
x H (3.5”) x H (7”) x H (7”) x H (7”) x H (3.5”) x H (3.5”) x H (7”)
_________________ _________________ _________________ _________________ _________________ _________________ _________________
32lbs 70lbs 70 50lbs 28lbs 25lbs 65lbs

Weight (with drives)

 11.34Kg 20.86 Kg 20.86 Kg 20.86 Kg 11.34Kg 11.34Kg 20.86 Kg
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Rack Space

 2U 4U 4U 4U 2U 2U 4U
_________________ _________________ _________________ _________________ _________________ _________________ _________________

Drives per unit

 8 16 16 16 8 na 16
_________________ _________________ _________________ _________________ _________________ _________________ _________________
Max Ambient Temp: Max Ambient Temp: Max Ambient Temp: Max Ambient Temp: Max Ambient Temp: Max Ambient Temp: Max Ambient Temp:
30C / 86F 30C / 86F 30C / 86F 30C / 86F 30C / 86F 30C / 86F 30C / 86F

Ambient Operating Temperature

 Min Ambient Temp: Min Ambient Temp: Min Ambient Temp: Min Ambient Temp: Min Ambient Temp: Min Ambient Temp: Min Ambient Temp:
5C / 41F 5C / 41F 5C / 41F 5C / 41F 5C / 41F 5C / 41F 5C / 41F
Non-Condensing Non-Condensing Non-Condensing Non-Condensing Non-Condensing Non-Condensing Non-Condensing
_________________ _________________ _________________ _________________ _________________ _________________ _________________
Startup 165W Startup 650W Startup 650W Startup 650W Startup 250W Startup 107W Startup 650W

Power draw (BTUs)

 Idle 107W Idle 176W Idle 290W Idle 290W Idle 107W Idle 107W Idle 175W
Active 137W Active 217W Active 217W Active 217W Active 137W Active 137W Active 217W
(500 BTU/hr) (750 BTU/hr) (750 BTU/hr) (750 BTU/hr) (500 BTU/hr) (500 BTU/hr) (750 BTU/hr)
