Facilis HUB Shared Storage for video editing is a system dedicated to improving post-production and content creation workflows. Included with every server is the Facilis Shared File System which easily accommodates multi-platform environments and enables collaboration among different applications and image formats. With our media storage systems, you can deliver 4K film color grading to low-bitrate craft editorial in a bigger environment. Facilis HUB provides the performance to get the job done. Look through our video storage servers and see why Facilis Technology is your shared storage solution.
Storage Management and Security
The Facilis Console gives you total control over your shared storage environment. Create, change and permission project-based storage volumes, and deploy them to the desktops of the facility workstations with the push of a button. Monitor real-time bandwidth usage by workstation and volume and apply the optimal server and client connections dynamically.
Log in securely to manage the workgroup from any workstation, or on any web-enabled device that can access the server IP address. Through our data storage system console, you can set up users and groups with your active directory server for a single point of user account administration, or apply permissions based on desktop user account and/or secure user and password.
Facilis HUB 4U Server 360 View
Facilis Technology Shared Storage Models
Contact us about our media storage systems by calling us at 978-562-7022 today!
Facilis HUB FLASHPoint 24S and 48S
- 24 or 48 SSDs on 12Gb SAS Controllers
- Capacities: 24TB; 48TB; 96TB; 192TB; 368TB
- Benchmark: 6GB/sec to 10GB/sec
Facilis HUB 8
- 8 HDDs on 12Gb SAS Controller
- Capacities: 32TB; 48TB; 64TB; 96TB; 128TB
- Benchmark: 1GB/sec
Facilis HUB 16
- 16 HDDs on 12Gb SAS Controllers
- Capacities: 64TB; 96TB; 128TB; 192TB; 256TB; 384TB; 480TB
- Benchmark: 2GB/sec

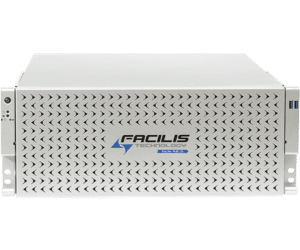

Facilis HUB 24
- 24 HDD on 12Gb SAS Controller
- Capacities: 96TB; 144TB; 192TB; 288TB; 384TB; 576TB; 720TB
- Benchmark: 3GB/sec
Facilis HUB 32
- 16 HDD on Internal 12Gb SAS Controller
- 16 HDD on External 12Gb SAS Controller
- Capacities: 128TB; 192TB; 256TB; 384TB; 512TB; 768TB; 960TB
- Benchmark: 3.5GB/sec

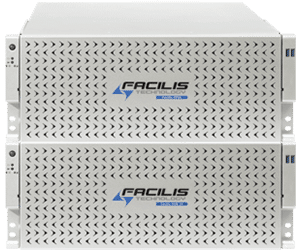

Facilis HUB 48
- 24 HDD on Internal 12Gb SAS Controller
- 24 HDD on External 12Gb SAS Controller
- Capacities: 192TB; 288TB; 384TB; 576TB; 768TB; 1152TB; 1440TB
- Benchmark: 4.5GB/sec

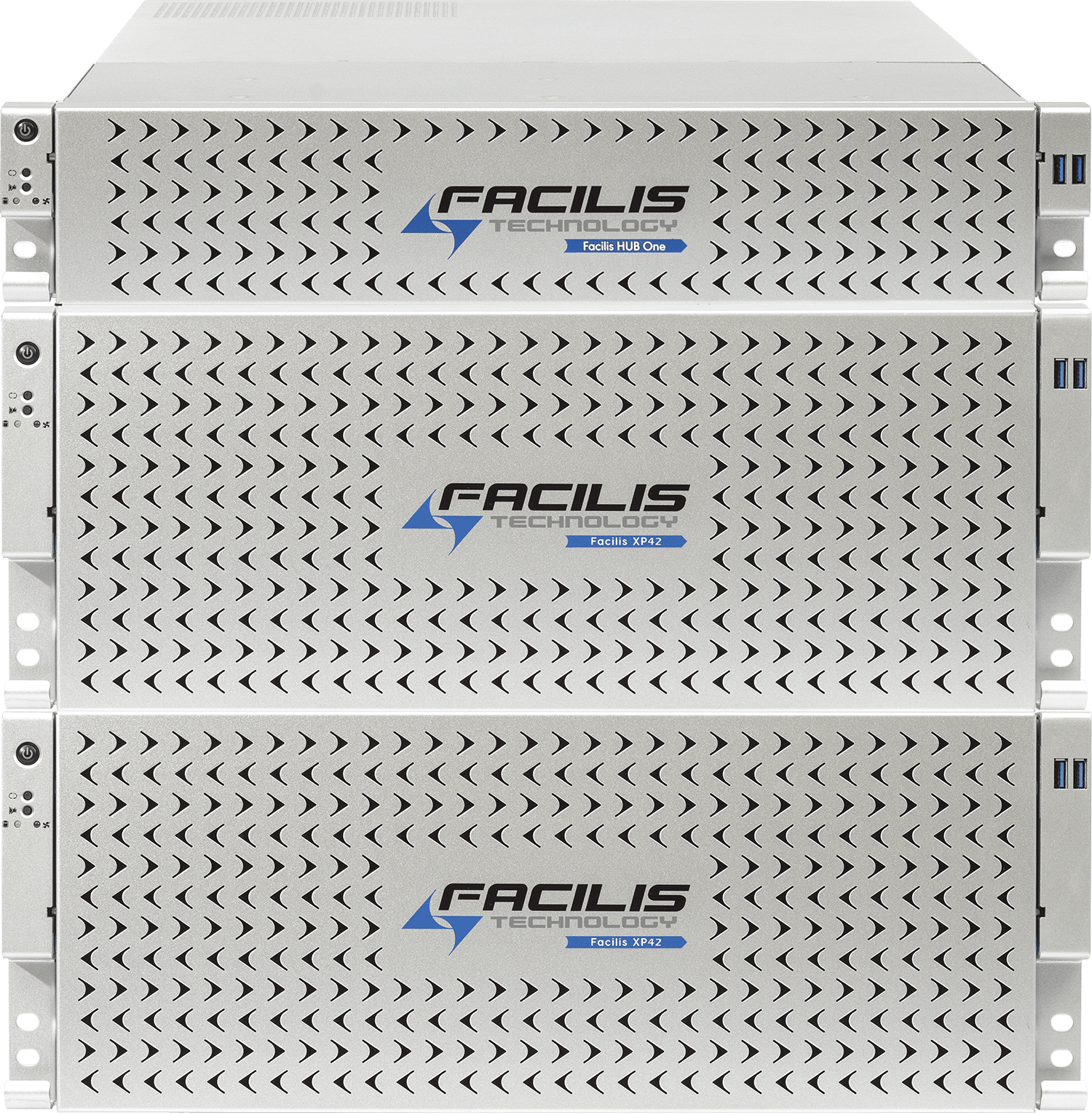

Facilis HUBVault
- HUB One Head Unit and Large Capacity Self-Healing RAID
- Capacity: 1.5PB to 5PB
- Benchmark: 4GB/sec to 8GB/sec
Facilis XP16/24, XP24F Expansion
- 16/24 HDDs connected via multi-port 12Gb SAS External Controllers
- XP16 Capacities: 64TB; 96TB, 128TB, 192TB, 256TB, 352TB
- XP24 Capacities: 96TB, 144TB, 192TB, 288TB, 384TB, 528TB
- XP24F Capacities: 24TB, 48TB, 96TB, 184TB
- Benchmark: 2GB/sec to 6GB/sec
Facilis FastTracker Edge
- 8 HDD on Internal 12Gb SAS Controller
- Cache Capacity: 16TB Internal
- Cloud Capacity: 10TB Access License
- Benchmark: 1GB/sec
Facilis Shared Storage Performance
| Model Name | Capacity (TB) | UHD DPX 2160p | 8K RED 16:9 7:1 24p | 4K DNxHR HQ Pro Res HQ 24P | UHD XAVC 480 | HD Pro Res HQ DNxHD 220 | HD Pro Res SQ DNxHD 145 | XDCAM HD 50Mb |
| Facilis HUB 8 | 32, 48, 64, 96, 128 | 1 | 4 | 7 | 10 | 14 | 18 | 45 |
| Facilis HUB 16 | 64, 96, 128, 192, 256, 384, 480 | 2 | 7 | 11 | 16 | 24 | 36 | 75 |
| Facilis HUB 24 | 96, 144, , 192, 288, 384, 576, 720 | 2 | 9 | 18 | 25 | 45 | 58 | 96 |
| Facilis HUB 32 | 128, 192, 256, 384, 512, 768, 960 | 3 | 11 | 22 | 30 | 53 | 66 | 112 |
| Facilis HUB 48 | 192, 288, 384, 576, 768, 1152, 1440 | 3 | 15 | 30 | 42 | 65 | 88 | 180 |
| Facilis FLASHPoint 24S | 24, 48, 96, 184 | 5 | 20 | 50 | 80 | 150 | 200 | 250+ |
| Facilis FLASHPoint 48S | 48, 96, 192, 368 | 8 | 33 | 83 | 133 | 250 | 300+ | 400+ |
